| Part number: | MC74VHC1G01DBVT1G |
| Description: | IC GATE NAND 1CH 2-INP SC74A |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Features | Open Drain |

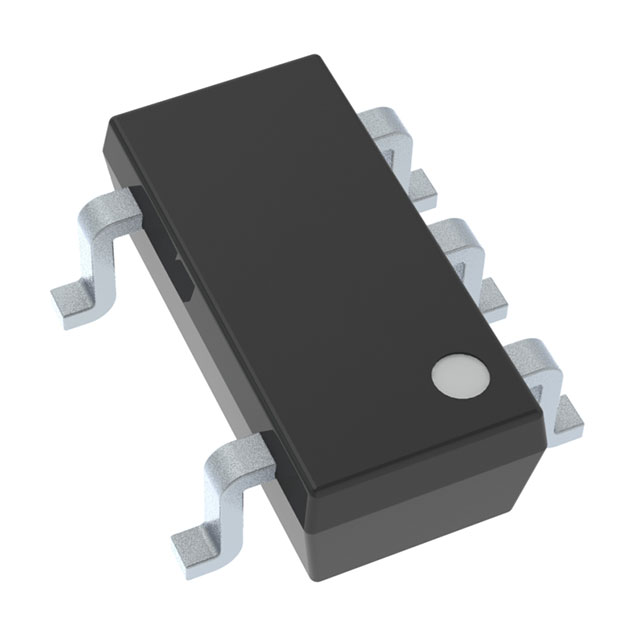

| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | -, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | SC-74A |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 1 µA |
|
