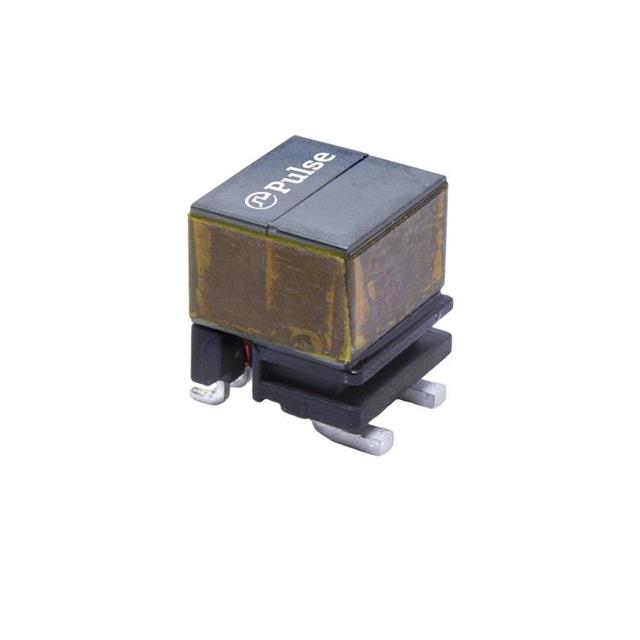

| Part number: | PH9505.180NLT |
| Description: | CURR SENSE XFMR 1:180 30A SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 150 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Size / Dimension | 0.504" L x 0.480" W (12.80mm x 12.20mm) |
| Mounting Type | Surface Mount |
| Type | Invasive |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.5mOhm Primary, 9Ohm Secondary Max |
| Turns Ratio - Primary:Secondary | 1:180 |
| Frequency Range | 20kHz |
| Height - Seated (Max) | 0.567" (14.40mm) |
| Inductance | 25 mH |
| Current Rating (Amps) | 30 A |
|
