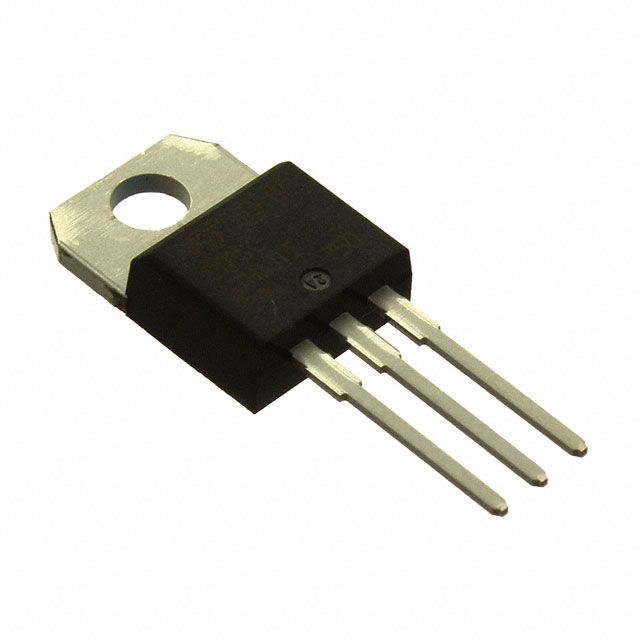

| Part number: | BTA12-800SWRG |
| Description: | TRIAC SENS GATE 800V 12A TO220AB |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 15 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A, 126A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-220AB Insulated |
| Current - On State (It (RMS)) (Max) | 12 A |
| Voltage - Off State | 800 V |
|
