| Part number: | TS420-600T |
| Description: | SCR 600V 4A TO220AB |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

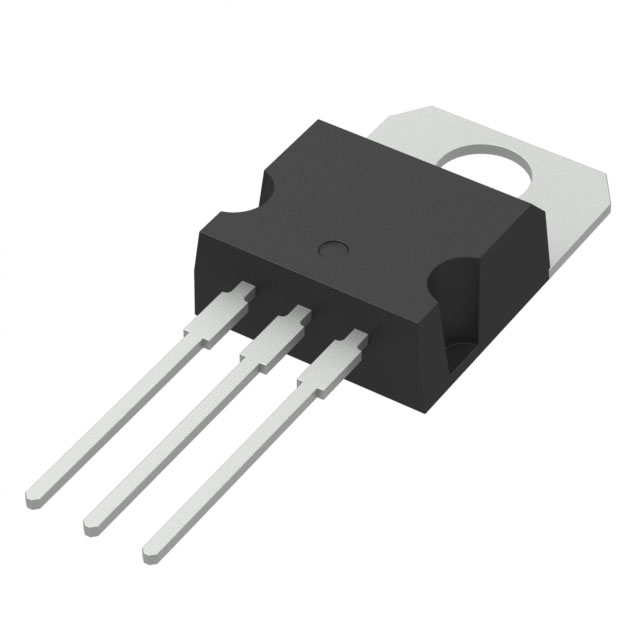

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 30A, 33A |
| Current - On State (It (AV)) (Max) | 2.5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | TO-220 |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 600 V |
|
