| Part number: | SN74HCS00QPWRQ1 |
| Description: | IC GATE NAND 4CH 2-INP 14TSSOP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Features | Schmitt Trigger Input |

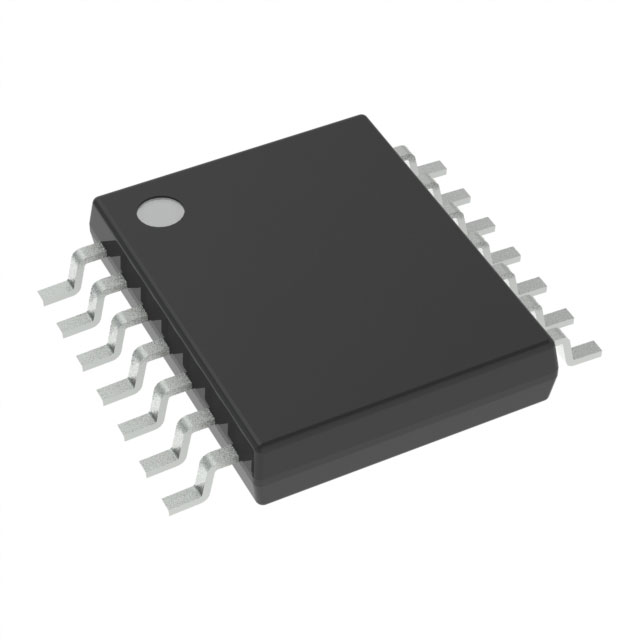

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-TSSOP |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Input Logic Level - Low | 1V ~ 3V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF |
| Grade | Automotive |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 2 µA |
| Qualification | AEC-Q100 |
|
