| Part number: | LMLP06A6M100CTAR |

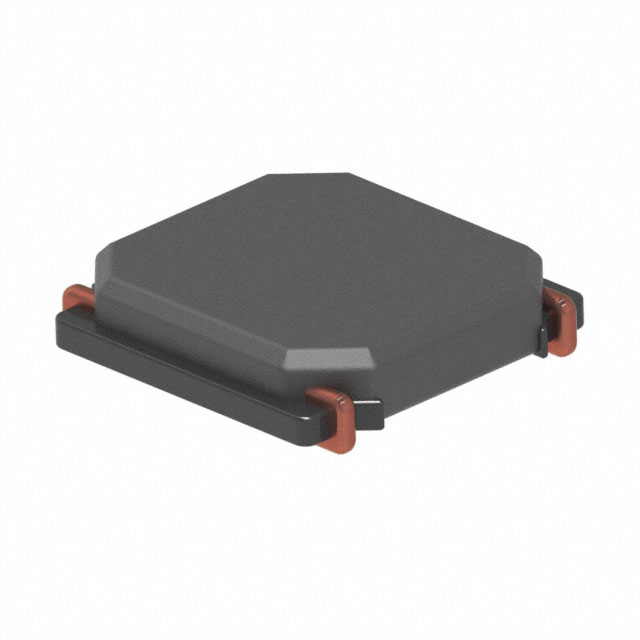

| Description: | FIXED IND 10UH 1A 235 MOHM SMD |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 235mOhm |
| Current - Saturation (Isat) | 1A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 1 A |
|
