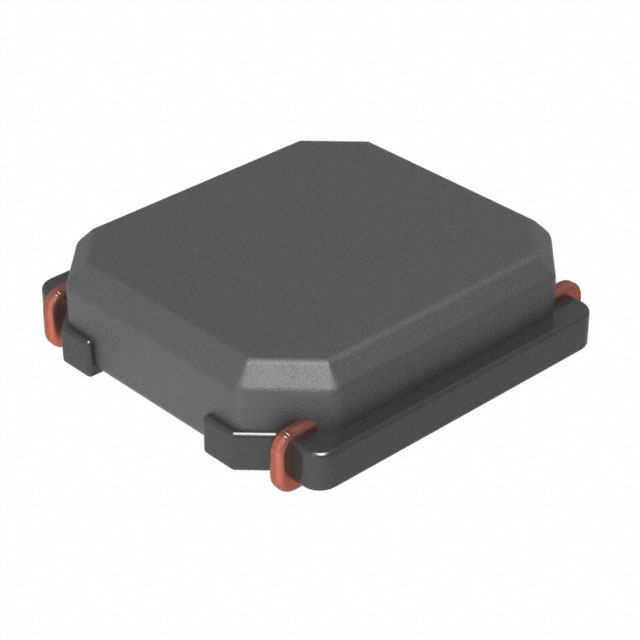

| Part number: | LMLP04A4N1R0CTAS |
| Description: | FIXED IND 1UH 1.5A 60 MOHM SMD |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 60mOhm |
| Current - Saturation (Isat) | 2.5A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Inductance | 1 µH |
| Current Rating (Amps) | 1.5 A |
|
