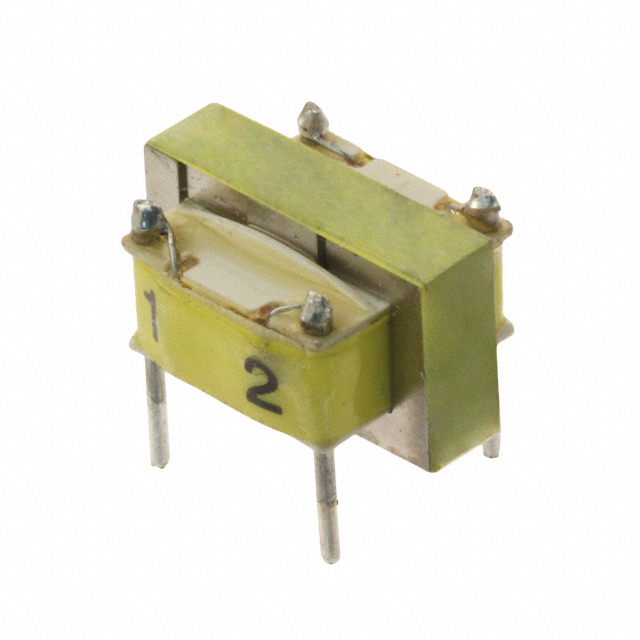

| Part number: | T1104 |
| Description: | AUDIO XFMR 600 / 600 TH |
| Manufacturer | Tamura |
| Encapsulation | Tray |
| Quantity | 600 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Tamura" |
| Size / Dimension | 0.780" L x 0.654" W (19.80mm x 16.60mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Transformer Type | Data/Voice Coupling |
| Insertion Loss | 1dB Typ @ 1kHz |
| Frequency Range | 300Hz ~ 3.5kHz |
| Voltage - Isolation | 1500VRMS @ 1 Minute |
| Approval Agency | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
| Return Loss | 26dB Min |
| Height - Seated (Max) | 0.469" (11.90mm) |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 46Ohm |
| DC Resistance (DCR) - Secondary | 63Ohm |
| Frequency Response | ±0.5dB |
| Power Level | -45dB ~ 7dB |
|
