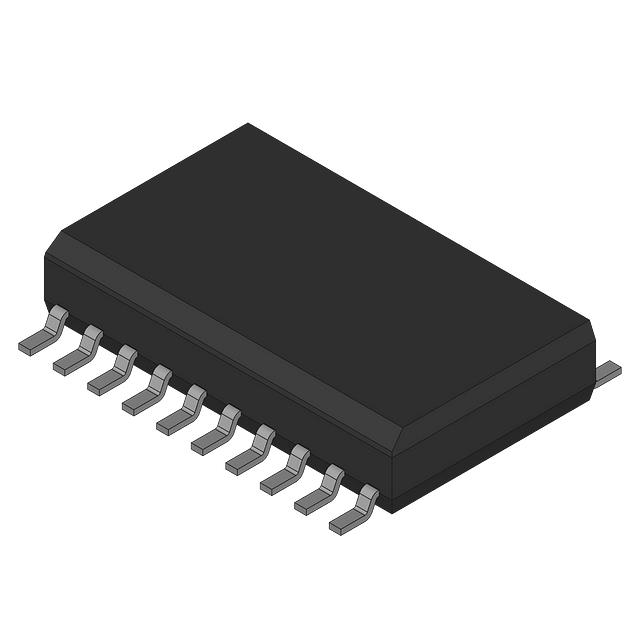

| Part number: | 74LVT574SJ |
| Description: | IC FF D-TYPE SNGL 8BIT 20SOP |
| Manufacturer | Fairchild Semiconductor |
| Encapsulation | Tube |
| Quantity | 833 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Fairchild Semiconductor" |
| Package / Case | 20-SOIC (0.209", 5.30mm Width) |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Standard |
| Type | D-Type |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Quiescent (Iq) | 190 µA |
| Current - Output High, Low | 32mA, 64mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 150 MHz |
| Input Capacitance | 4 pF |
| Supplier Device Package | 20-SOP |
| Max Propagation Delay @ V, Max CL | 4.6ns @ 3.3V, 50pF |
| Number of Bits per Element | 8 |
|
