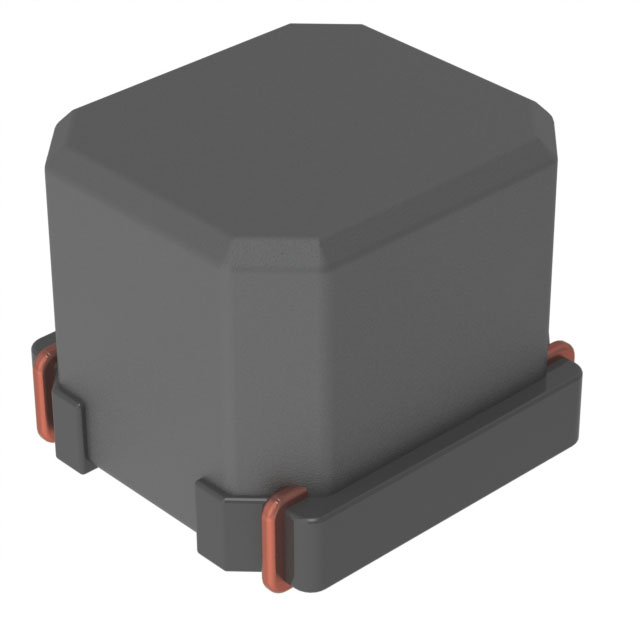

| Part number: | LMLP1011M6R8DTAS |
| Description: | FIXED IND 6.8UH 6.5A 25MOHM SMD |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.439" L x 0.394" W (11.15mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 25mOhm Max |
| Current - Saturation (Isat) | 9A |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Inductance | 6.8 µH |
| Current Rating (Amps) | 6.5 A |
|
