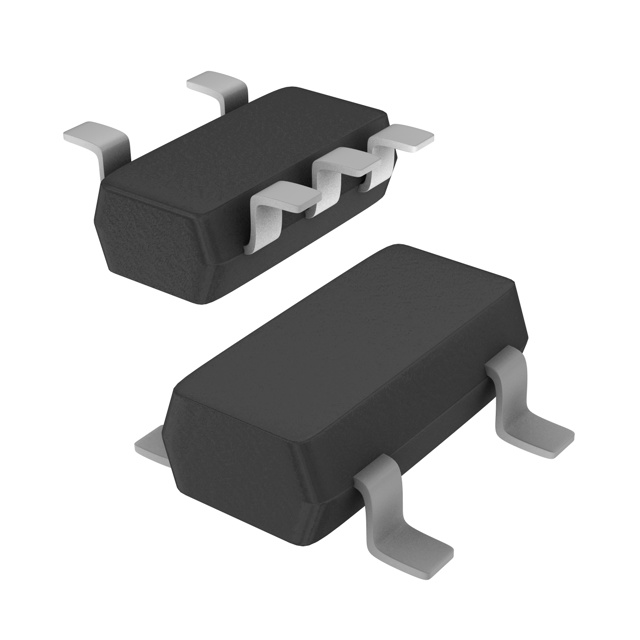

| Part number: | 74LVC1G384GV,125 |
| Description: | IC SWITCH SPST-NCX1 10OHM SC74A |
| Manufacturer | Nexperia |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nexperia" |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 10Ohm |
| -3db Bandwidth | 500MHz |
| Supplier Device Package | SC-74A |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Charge Injection | 7.5pC |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Switch Time (Ton, Toff) (Max) | 4.2ns, 5ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Number of Circuits | 1 |
|
