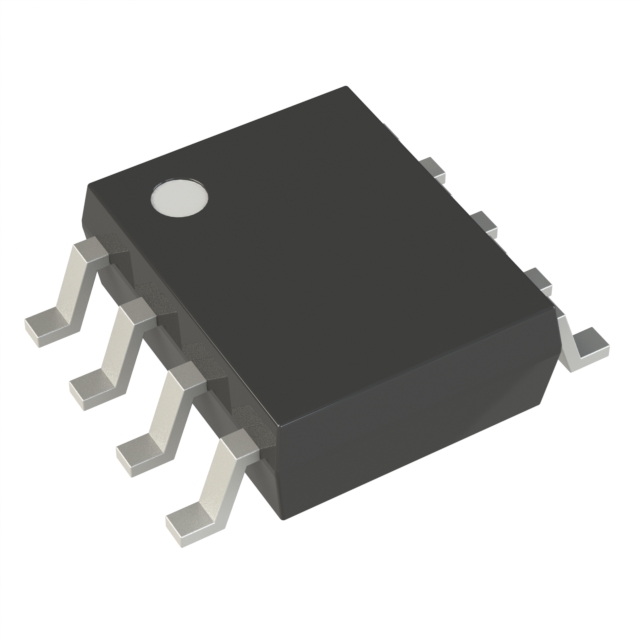

| Part number: | Z0109M1 |
| Description: | TRIAC 600V 1A 8SO |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 7500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A, 8.5A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | 8-SO |
| Current - On State (It (RMS)) (Max) | 1 A |
| Voltage - Off State | 600 V |
|
