| Part number: | ECW-FG80705JA |

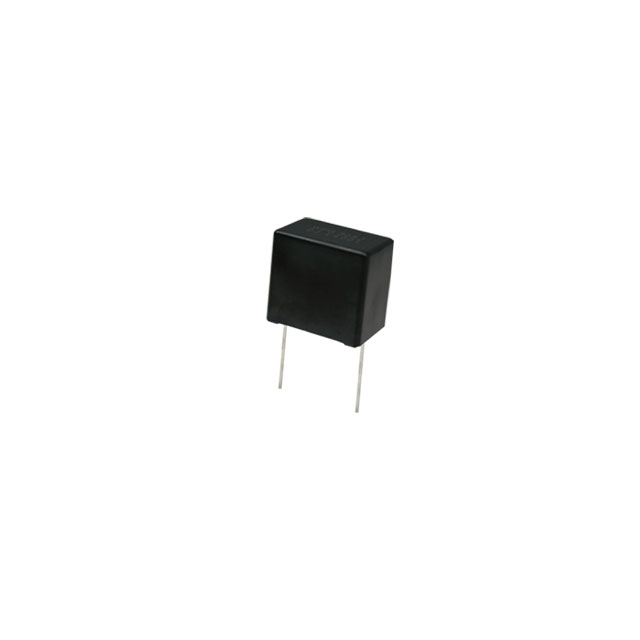

| Description: | CAP FILM 7.0UF 800VDC RADIAL |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±5% |
| Features | High Temperature |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 110°C |
| Applications | Automotive; High Frequency, Switching |
| Lead Spacing | 1.083" (27.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 800V |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Capacitance | 7 µF |
| Size / Dimension | 1.240" L x 0.689" W (31.50mm x 17.50mm) |
|
