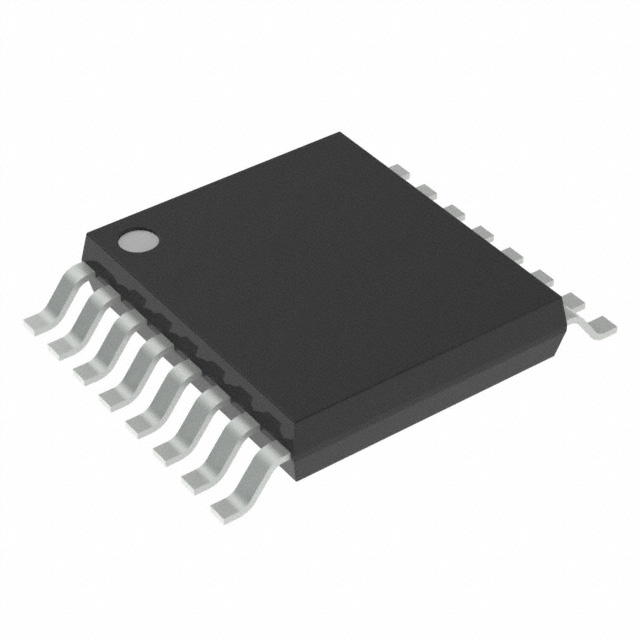

| Part number: | SN74HCS174QPWRQ1 |
| Description: | IC FF D-TYPE SNGL 6BIT 16TSSOP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Output Type | Complementary |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 2 µA |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 200 MHz |
| Input Capacitance | 5 pF |
| Supplier Device Package | 16-TSSOP |
| Max Propagation Delay @ V, Max CL | 11ns @ 6V, 50pF |
| Grade | Automotive |
| Number of Bits per Element | 6 |
| Qualification | AEC-Q100 |
|
