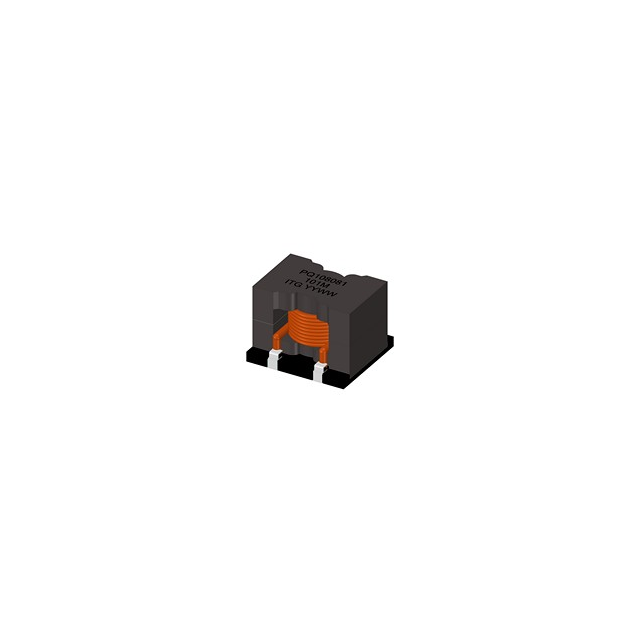

| Part number: | PQ108081-330MHF |
| Description: | FIXED IND 33UH 15.6A 8.9MOHM SMD |
| Manufacturer | ITG Electronics, Inc. |
| Encapsulation | Tray |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ITG Electronics, Inc." |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 1.100" L x 1.100" W (27.94mm x 27.94mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 8.9mOhm |
| Current - Saturation (Isat) | 19.8A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 300 kHz |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Inductance | 33 µH |
| Current Rating (Amps) | 15.6 A |
|
