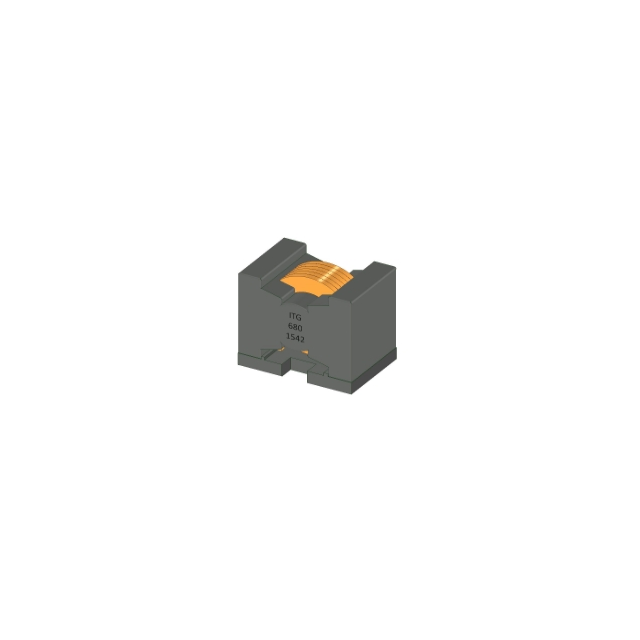

| Part number: | DHP106095S-220MHF |
| Description: | FIXED IND 24UH 19A 5.9 MOHM TH |
| Manufacturer | ITG Electronics, Inc. |
| Encapsulation | Tray |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ITG Electronics, Inc." |
| Tolerance | ±20% |
| Package / Case | Radial, Vertical |
| Size / Dimension | 1.063" L x 0.724" W (27.00mm x 18.40mm) |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 5.9mOhm |
| Current - Saturation (Isat) | 23A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 300 kHz |
| Height - Seated (Max) | 0.949" (24.10mm) |
| Inductance | 24 µH |
| Current Rating (Amps) | 19 A |
|
