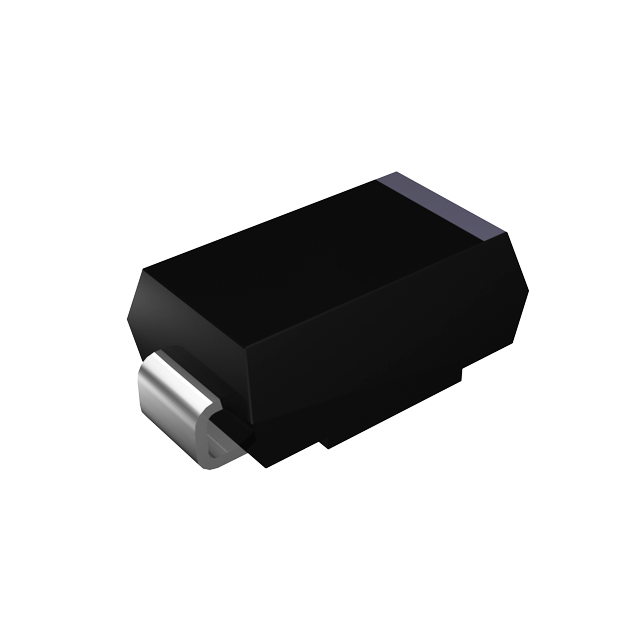

| Part number: | SK39B |
| Description: | DIODE SCHOTTKY 90V 3A DO214AA |
| Manufacturer | SURGE |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "SURGE" |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 100pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-214AA (SMB) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Voltage - Forward (Vf) (Max) @ If | 790 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 30 µA @ 90 V |
| Qualification | AEC-Q101 |
|
