| Part number: | OC69421-FNM |

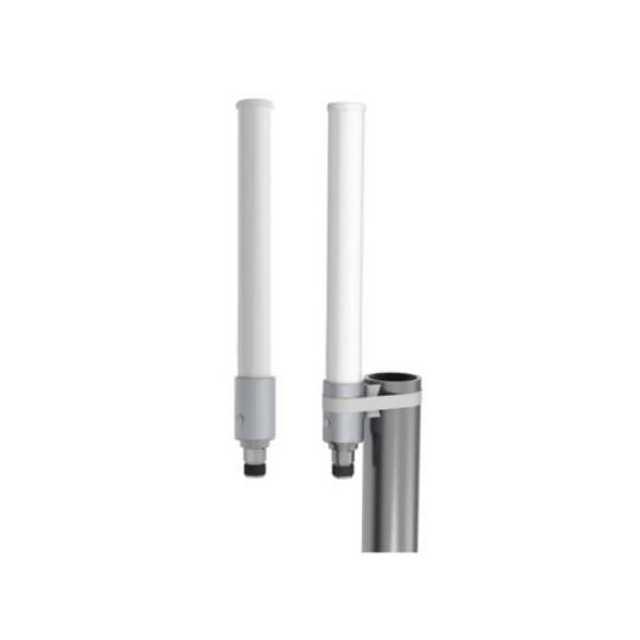

| Description: | OMNI, 698-4200MHZ, 1.5/4/5 DBI,N |
| Manufacturer | TE Connectivity Laird |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity Laird" |
| Mounting Type | Bracket Mount |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.1GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz |
| Applications | 4G, 5G, CBRS |
| Gain | 1.5dBi, 3.5dBi, 3.5dBi, 3.5dBi, 3.5dBi, 5dBi |
| Termination | N Type Male |
| Number of Bands | 6 |
| VSWR | 2, 2.5 |
| Antenna Type | Whip, Straight |
| Height (Max) | 9.764" (248.00mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.85GHz, 2.045GHz, 2.3GHz, 2.595GHz, 3.75GHz |
| RF Family/Standard | Cellular |
| Power - Max | 20 W |
|
