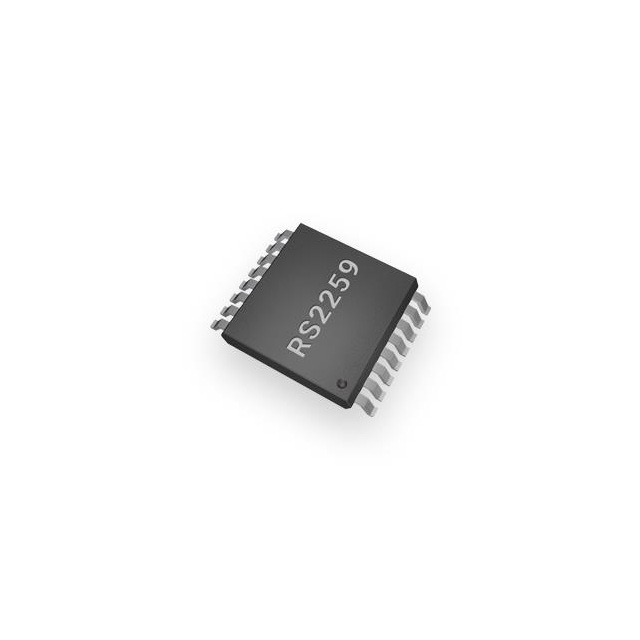

| Part number: | RS2259BXTSS16 |
| Description: | IC SWITCH SPST X 4 1OHM 16TSSOP |
| Manufacturer | Runic Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Runic Technology" |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| On-State Resistance (Max) | 1Ohm |
| -3db Bandwidth | 30MHz |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 40mOhm (Typ) |
| Switch Time (Ton, Toff) (Max) | 50ns (Typ), 15ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 80pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Number of Circuits | 4 |
|
