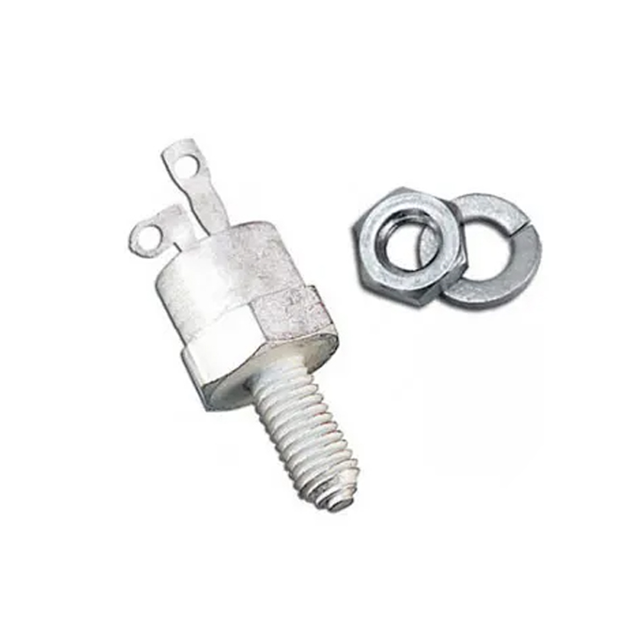

| Part number: | 2N1775 |
| Description: | TO64 8 AMP SCR |
| Manufacturer | Solid State Inc. |
| Encapsulation | Box |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Solid State Inc." |
| Package / Case | TO-208AB, TO-64-3, Stud |
| Mounting Type | Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -65°C ~ 125°C |
| Current - Hold (Ih) (Max) | 8 mA |
| Current - Gate Trigger (Igt) (Max) | 2 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 60A |
| Current - On State (It (AV)) (Max) | 4.7 A |
| Voltage - Gate Trigger (Vgt) (Max) | 10 V |
| Current - Off State (Max) | 5 mA |
| Supplier Device Package | TO-64 |
| Current - On State (It (RMS)) (Max) | 7.4 A |
| Voltage - Off State | 250 V |
|
