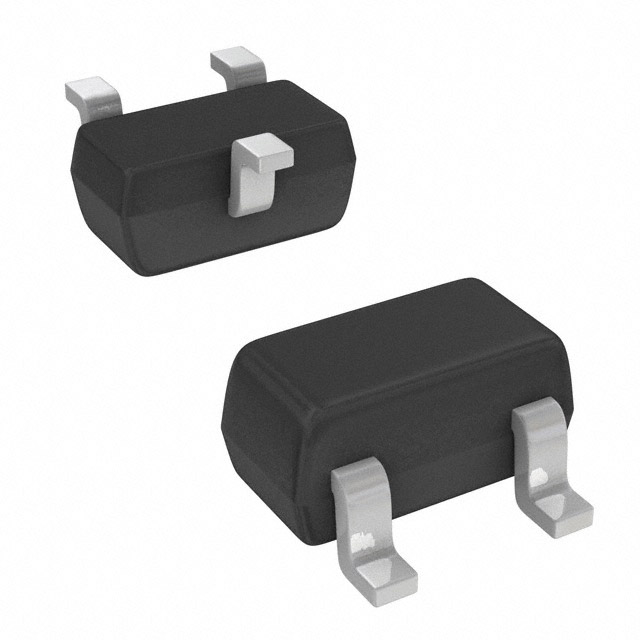

| Part number: | NE68819-T1-A |
| Description: | NPN SILICON AMPLIFIER AND OSCILL |
| Manufacturer | CEL (California Eastern Laboratories) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CEL (California Eastern Laboratories)" |
| Package / Case | SC-75, SOT-416 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 8dB |
| Power - Max | 125mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 6V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 3mA, 1V |
| Frequency - Transition | 9GHz |
| Noise Figure (dB Typ @ f) | 1.7dB @ 2GHz |
| Supplier Device Package | SC-75 (USM) |
|
