| Part number: | PAS6322.150NLT |

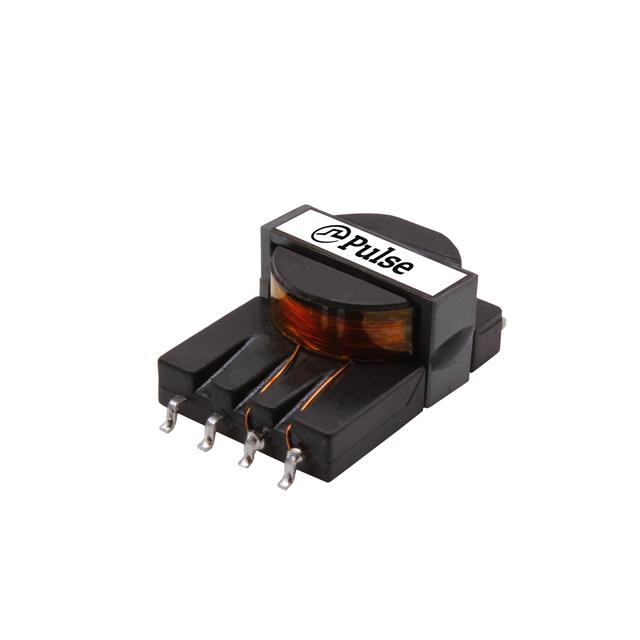

| Description: | CURR SENSE XFMR 1:150 50A SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 350 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Size / Dimension | 0.122" L x 0.252" W (3.10mm x 6.40mm) |
| Mounting Type | Surface Mount |
| Type | Invasive |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.5mOhm Primary, 6Ohm Secondary Max |
| Turns Ratio - Primary:Secondary | 1:150 |
| Frequency Range | 20kHz ~ 1MHz |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Inductance | 10 mH |
| Current Rating (Amps) | 50 A |
|
