| Part number: | 63PZH56M10X9 |

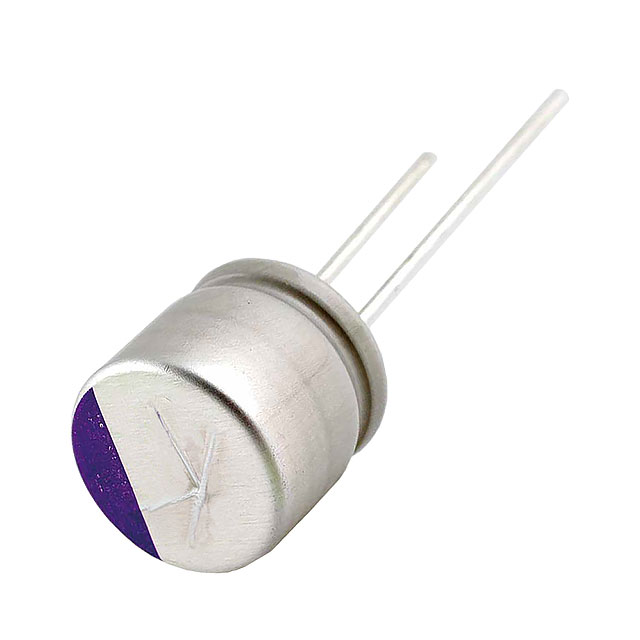

| Description: | CAP ALUM HYBRID 56UF 20% 63V T/H |
| Manufacturer | Rubycon |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Through Hole |
| Type | Hybrid |
| Operating Temperature | -55°C ~ 135°C |
| Applications | Automotive |
| Lead Spacing | 0.197" (5.00mm) |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 135°C |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Capacitance | 56 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ Low Frequency | 130 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
|
