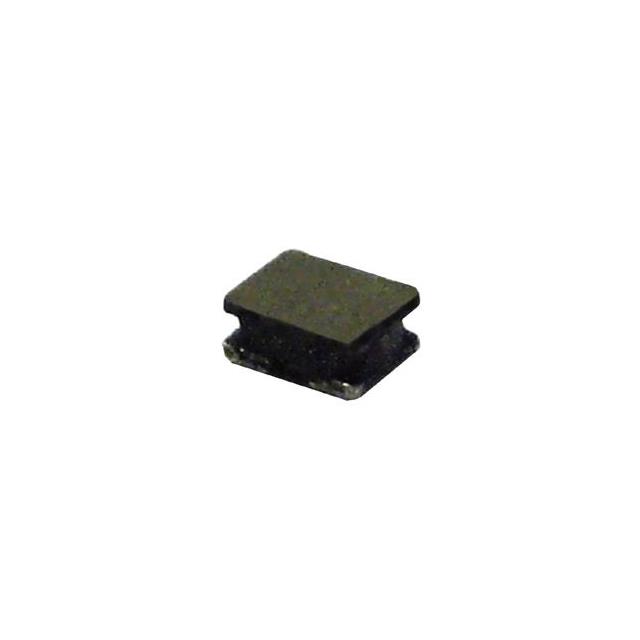

| Part number: | CTLVH2012F-4R7M |
| Description: | SMD SHIELDED POWER INDUCTOR |
| Manufacturer | Central Technologies |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Central Technologies" |
| Tolerance | ±20% |
| Package / Case | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 270mOhm Max |
| Frequency - Self Resonant | 26MHz |
| Current - Saturation (Isat) | 1.4A |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 0806 |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 1.2 A |
|
