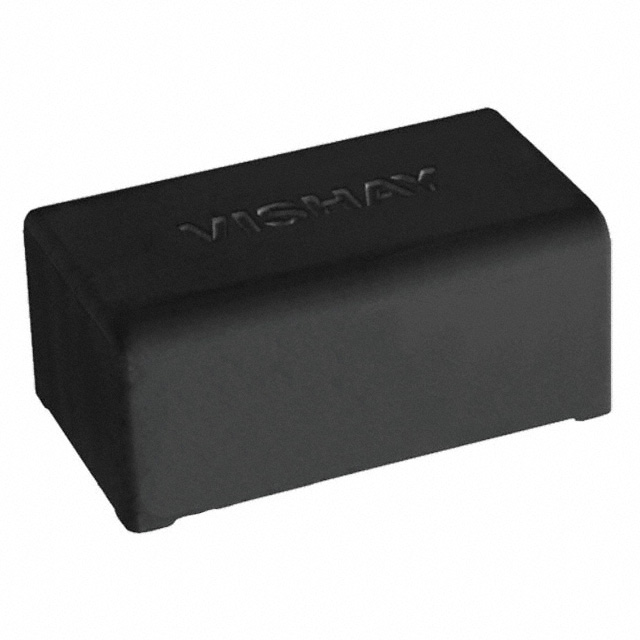

| Part number: | MKP1848SE62570JY5F |
| Description: | 25F 5% TOLERANCE 700VDC PITCH: 5 |
| Manufacturer | Vishay Roederstein |
| Encapsulation | Tray |
| Quantity | 35 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay Roederstein" |
| Tolerance | ±5% |
| Features | Low ESR, Low ESL |
| Package / Case | Radial - 4 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 2.067" (52.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 700V |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Capacitance | 25 µF |
| ESR (Equivalent Series Resistance) | 7 mOhms |
| Size / Dimension | 2.264" L x 1.535" W (57.50mm x 39.00mm) |
|
