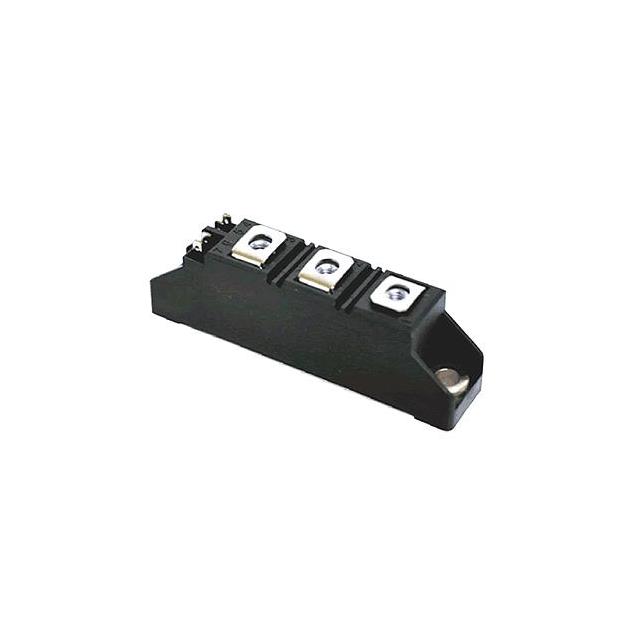

| Part number: | SCE55AA160 |
| Description: | THYRISTOR MODULE 1600V 55A |
| Manufacturer | SANREX |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "SANREX" |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 160 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1370A, 1500A |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 55 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 86 A |
| Voltage - Off State | 1.6 kV |
|
