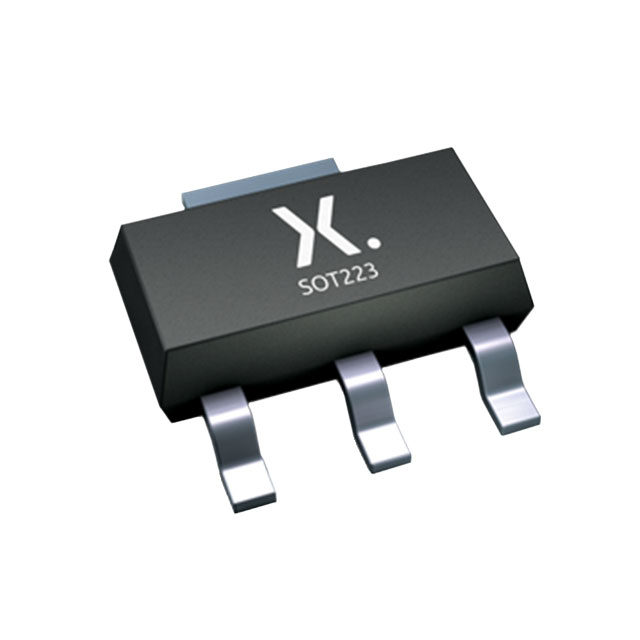

| Part number: | BCP68-25-QF |
| Description: | TRANS NPN 20V 2A SOT223 |
| Manufacturer | Nexperia |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nexperia" |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 500mA, 1V |
| Frequency - Transition | 170MHz |
| Supplier Device Package | SOT-223 |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Power - Max | 650 mW |
| Qualification | AEC-Q101 |
|
