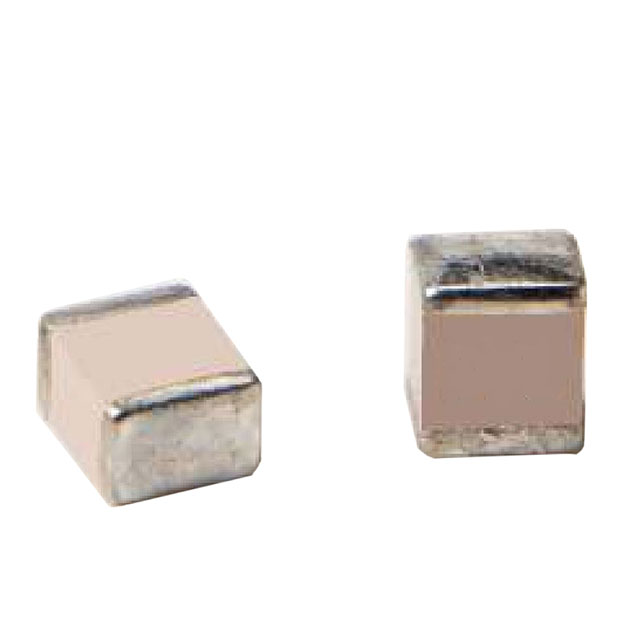

| Part number: | 1111N220GW501X |
| Description: | CAP CER 22PF 500V C0G/NP0 1111 |
| Manufacturer | Passive Plus |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Passive Plus" |
| Tolerance | ±2% |
| Features | High Q, Low Loss, Low ESL |
| Voltage - Rated | 500V |
| Package / Case | 1111 (2828 Metric) |
| Temperature Coefficient | C0G, NP0 |
| Size / Dimension | 0.110" L x 0.110" W (2.79mm x 2.79mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 175°C |
| Applications | RF, Microwave, High Frequency, Bypass, Decoupling |
| Thickness (Max) | 0.102" (2.60mm) |
| Capacitance | 22 pF |
|
