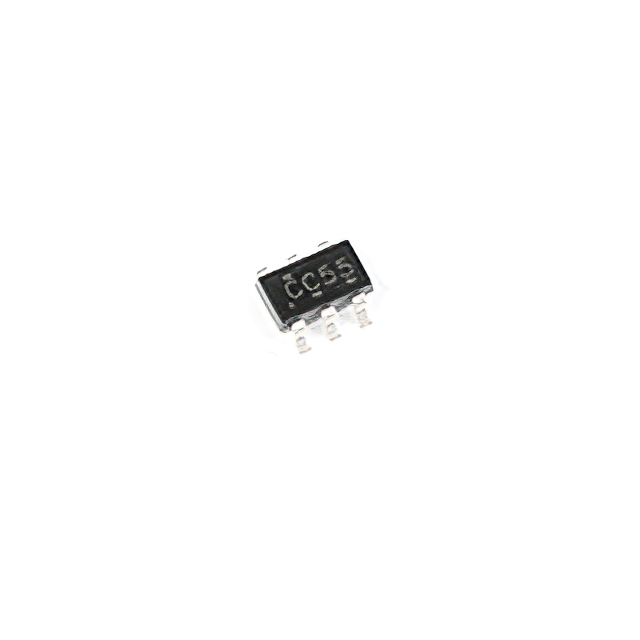

| Part number: | SN74LVC1G3157DBVR |
| Description: | IC SWITCH SPDT X 1 7OHM SOT23-6 |
| Manufacturer | UMW |
| Encapsulation | Cut Tape (CT) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "UMW" |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 7Ohm |
| Supplier Device Package | SOT-23-6 |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Charge Injection | 7pC |
| Crosstalk | -54dB @ 10MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| Channel Capacitance (CS(off), CD(off)) | 2.3pF, - |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 1 |
|
