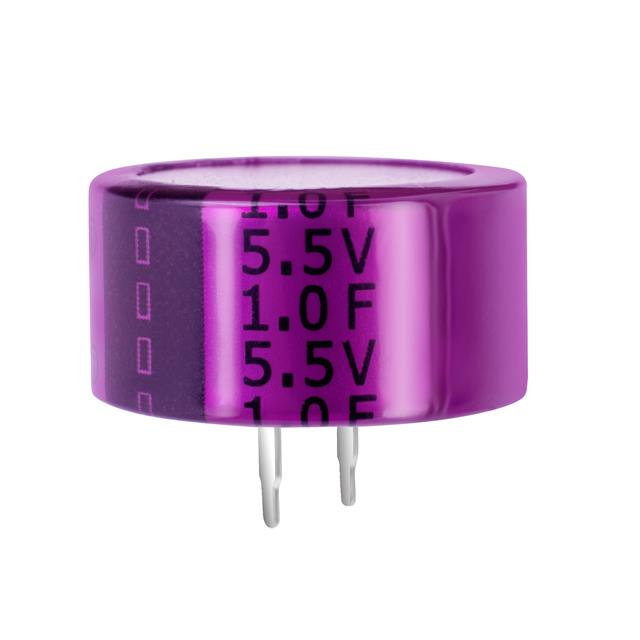

| Part number: | CW5R5105CF-ZJ |
| Description: | CAP 1.0F -20% +80% 5.5V T/C |
| Manufacturer | Zhi Feng Wei Technology |
| Encapsulation | Box |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zhi Feng Wei Technology" |
| Tolerance | -20%, +80% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.846" Dia (21.50mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Lead Spacing | 0.197" (5.00mm) |
| Termination | PC Pins |
| ESR (Equivalent Series Resistance) | 30Ohm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Capacitance | 1 F |
| Voltage - Rated | 5.5 V |
|
