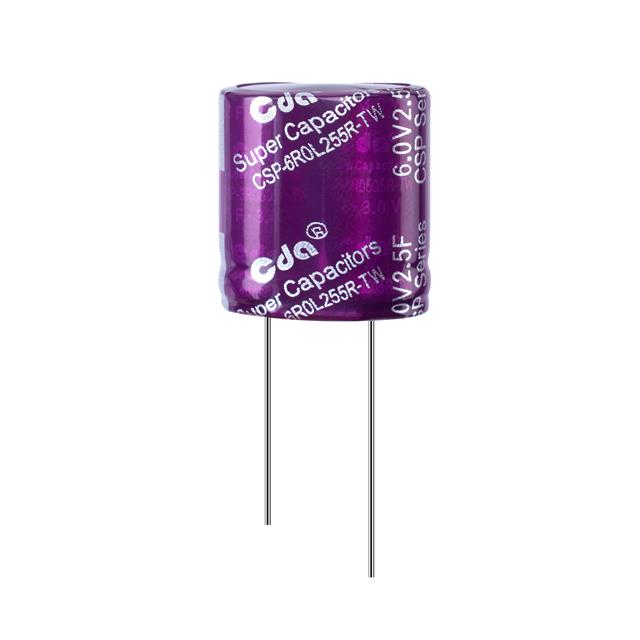

| Part number: | CSP-6R0L255R-TW |
| Description: | 6.0V 2.5F 20*10*22 EDLC |
| Manufacturer | Zhi Feng Wei Technology |
| Encapsulation | Box |
| Quantity | 342 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zhi Feng Wei Technology" |
| Package / Case | Radial, Can |
| Size / Dimension | 0.787" L x 0.394" W (20.00mm x 10.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 65°C |
| Lead Spacing | 0.610" (15.50mm) |
| Termination | PC Pins |
| ESR (Equivalent Series Resistance) | 180mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 65°C |
| Height - Seated (Max) | 0.925" (23.50mm) |
| Capacitance | 2.5 F |
| Voltage - Rated | 6 V |
|
