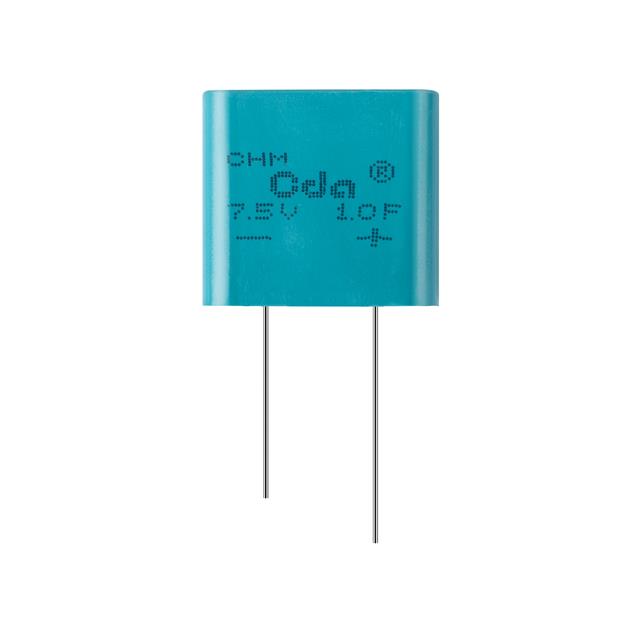

| Part number: | CHM-7R5L105R-TW |
| Description: | 7.5V 1.0F 26*9*24 EDLC |
| Manufacturer | Zhi Feng Wei Technology |
| Encapsulation | Box |
| Quantity | 198 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zhi Feng Wei Technology" |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.354" W (26.00mm x 9.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 65°C |
| Lead Spacing | 0.453" (11.50mm) |
| Termination | PC Pins |
| ESR (Equivalent Series Resistance) | 285mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 65°C |
| Height - Seated (Max) | 1.004" (25.50mm) |
| Capacitance | 1 F |
| Voltage - Rated | 7.5 V |
|
