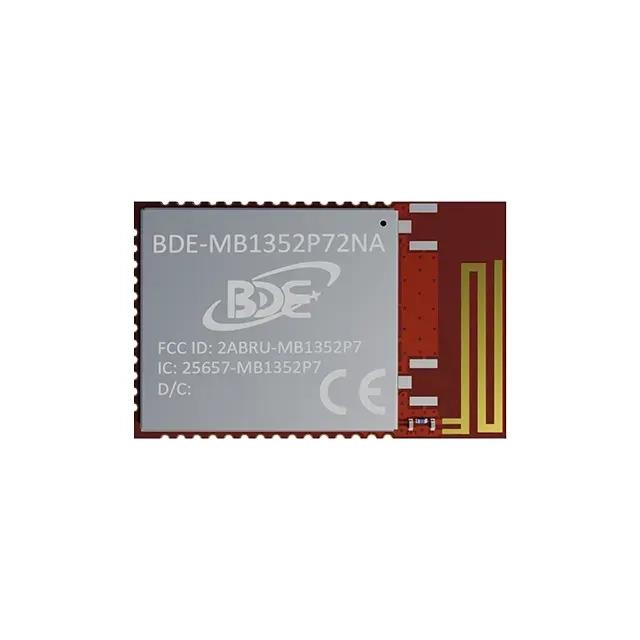

| Part number: | BDE-MB1352P72NA |
| Description: | RF TXRX MODULE BT RF PAD PCB SMD |
| Manufacturer | BDE Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "BDE Technology" |
| Package / Case | 42-SMD Module |
| Sensitivity | -121dBm |
| Mounting Type | Surface Mount |
| Frequency | 868MHz, 915MHz, 2.4GHz |
| Memory Size | 704kB Flash, 144kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.8V |
| Power - Output | 20dBm |
| Data Rate | 2Mbps |
| Protocol | Bluetooth v5.0, Thread, Wireless M-Bus, Zigbee |
| Current - Receiving | 5.4mA ~ 7.1mA |
| Current - Transmitting | 8mA ~ 101mA |
| Antenna Type | RF PAD, PCB |
| Utilized IC / Part | CC1352P7 |
| Modulation | DSSS, FSK, GFSK, O-QPSK |
| RF Family/Standard | Bluetooth, ZigBee |
| Serial Interfaces | ADC, GPIO, I2C, I2S, SPI, UART |
| DigiKey Programmable | Not Verified |
|
