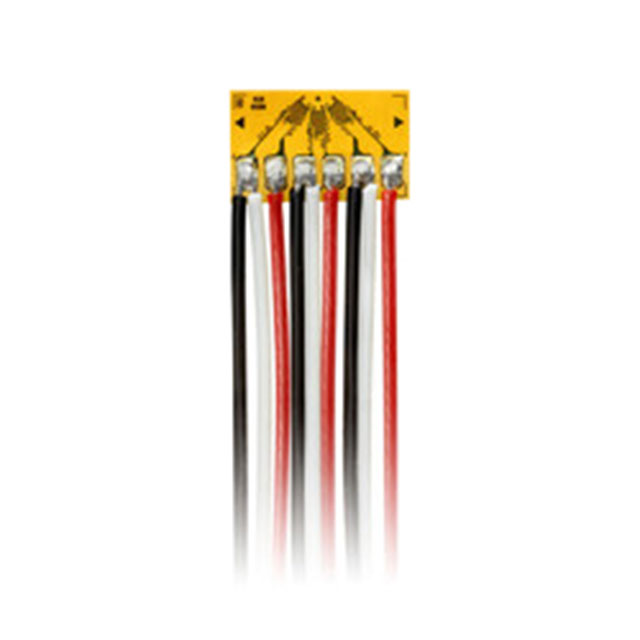

| Part number: | MMF404165 |
| Description: | C5K-06-S5198-350 - STRAIN GAGES |
| Manufacturer | VPG Micro-Measurements |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "VPG Micro-Measurements" |
| Operating Temperature | -100 ~ 400°F (-75 ~ 205°C) |
| Length - Overall | 0.09" (2.2mm) |
| Resistance Tolerance | ±0.5% |
| Width - Overall | 0.15" (3.9mm) |
| Length - Active | 0.014" (0.36mm) per section |
| Strain Range | ±1.5% |
| Pattern Type | Rectangular Rosette |
| Length - Overall Pattern | 0.071" (1.81mm) |
| Width - Active | 0.012" (0.30mm) per section |
| Width - Overall Pattern | 0.143" (3.63mm) |
| Resistance | 350 Ohms |
|
