| Part number: | SI2300A |
| Description: | 20V 6A 25MR@4.5V,6A 1V@50A N CHA |
| Manufacturer | UMW |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "UMW" |

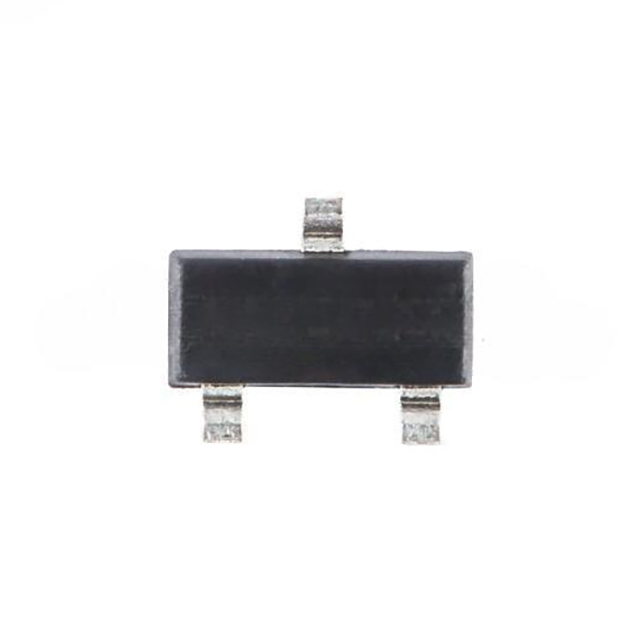

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 50µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 574 pF @ 10 V |
|
