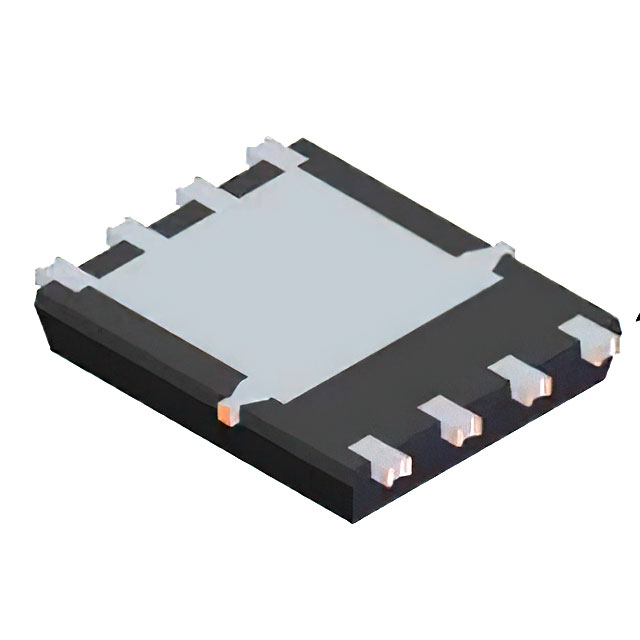

| Part number: | DMTH10H4M5LPSW |
| Description: | MOSFET BVDSS: 61V~100V POWERDI50 |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 107A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.9mOhm @ 30A, 10V |
| Power Dissipation (Max) | 4.7W (Ta), 136W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerDI5060-8 (Type UX) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4843 pF @ 50 V |
|
