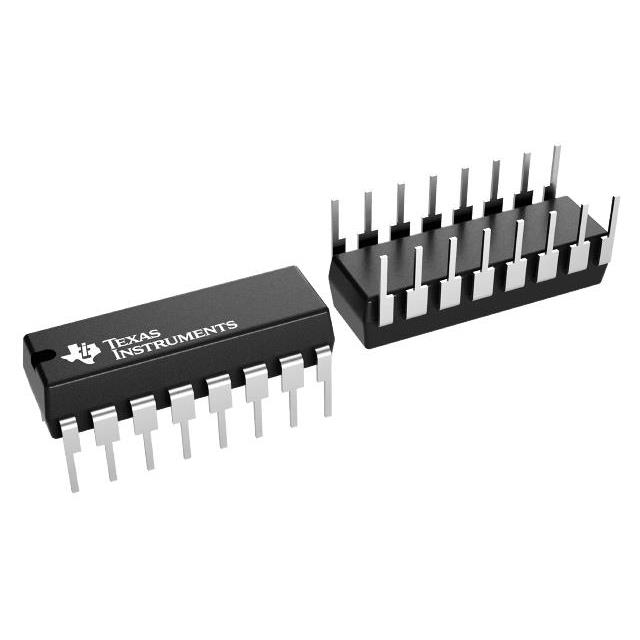

| Part number: | 74ACT11032NE4 |
| Description: | IC GATE OR 4CH 2-INP 16DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | OR Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 24mA, 24mA |
| Number of Inputs | 2 |
| Supplier Device Package | 16-PDIP |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Max Propagation Delay @ V, Max CL | 8.1ns @ 5V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 4 µA |
|
