| Part number: | SN74HC74NE4 |
| Description: | IC FF D-TYPE DUAL 1BIT 14DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

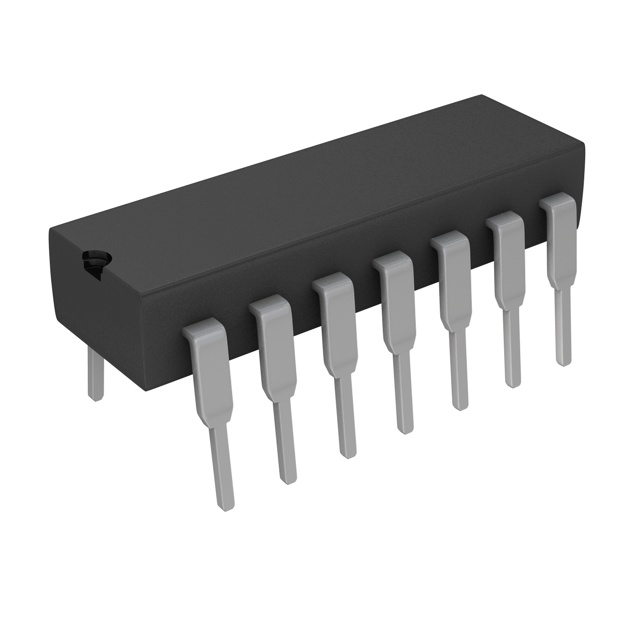

| Package / Case | 14-DIP (0.300", 7.62mm) |
| Output Type | Complementary |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 60 MHz |
| Input Capacitance | 3 pF |
| Supplier Device Package | 14-PDIP |
| Max Propagation Delay @ V, Max CL | 30ns @ 6V, 50pF |
| Number of Bits per Element | 1 |
|
