| Part number: | SN5450J |
| Description: | DUAL 2-WIDE 2-INPUT AND-OR-INVER |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

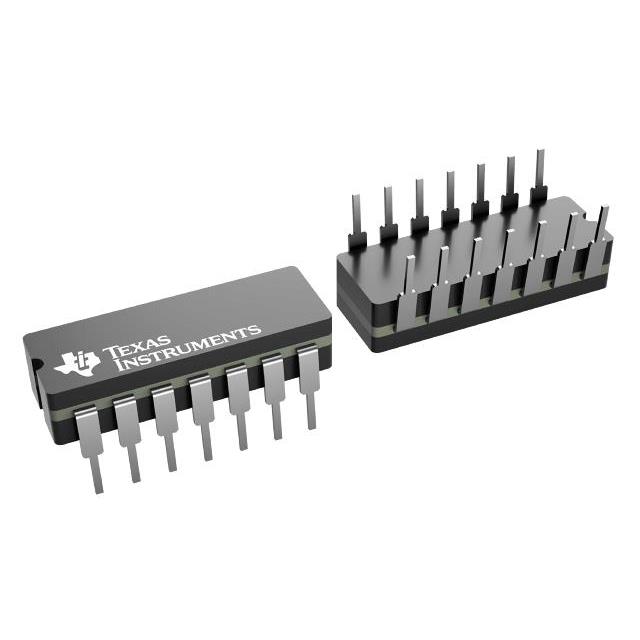

| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Output Type | Single-Ended |
| Mounting Type | Through Hole |
| Logic Type | AND/OR/INVERT Gate |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 16mA, 400µA |
| Number of Inputs | 8 Input (2, 2, 2, 2) |
| Schmitt Trigger Input | No |
| Supplier Device Package | 14-CDIP |
| Number of Circuits | 2 |
|
