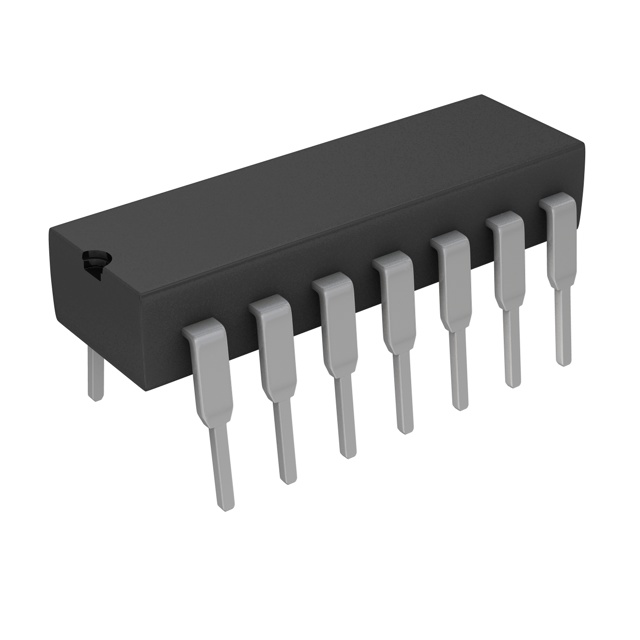

| Part number: | SN74HC02N-NG |
| Description: | IC GATE NOR 4CH 2-INP 14DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | NOR Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-PDIP |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 2 µA |
|
