| Part number: | GT080N08D5 |
| Description: | N85V,65A,RD<8.5M@10V,VTH2.0V~4.0 |
| Manufacturer | Goford Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Goford Semiconductor" |

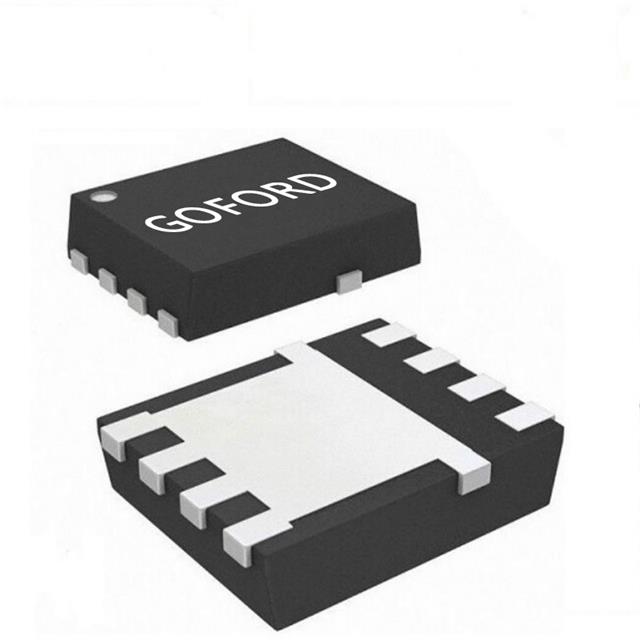

| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 65A (Tc) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 20A, 10V |
| Power Dissipation (Max) | 69W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-DFN (4.9x5.75) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 85 V |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1885 pF @ 50 V |
|
