| Part number: | SSF3051G7 |
| Description: | MOSFET, P-CH, SINGLE, -4A, -30V, |
| Manufacturer | Good Ark Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Good Ark Semiconductor" |

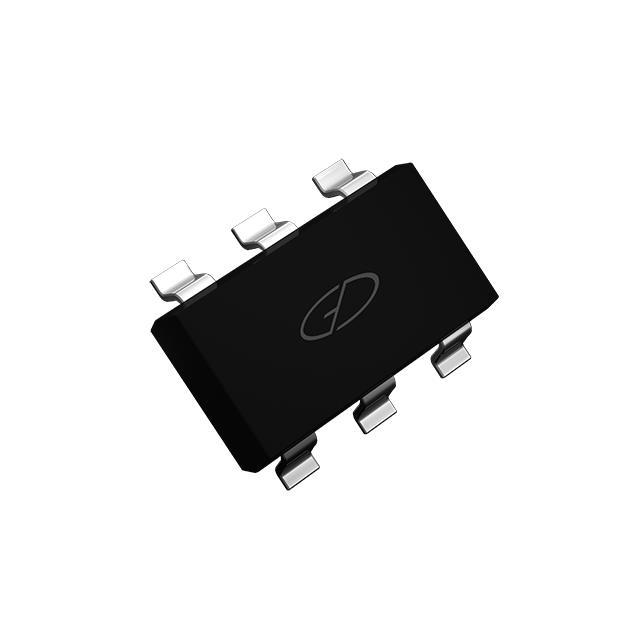

| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.4A |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 4.4A, 10V |
| Power Dissipation (Max) | 1.7W |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | SOT-23-6L |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 7.1 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 520 pF @ 15 V |
|
