| Part number: | BSS138 |
| Description: | MOSFET, N-CH, SINGLE, 0.22A, 50V |
| Manufacturer | Good Ark Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Good Ark Semiconductor" |

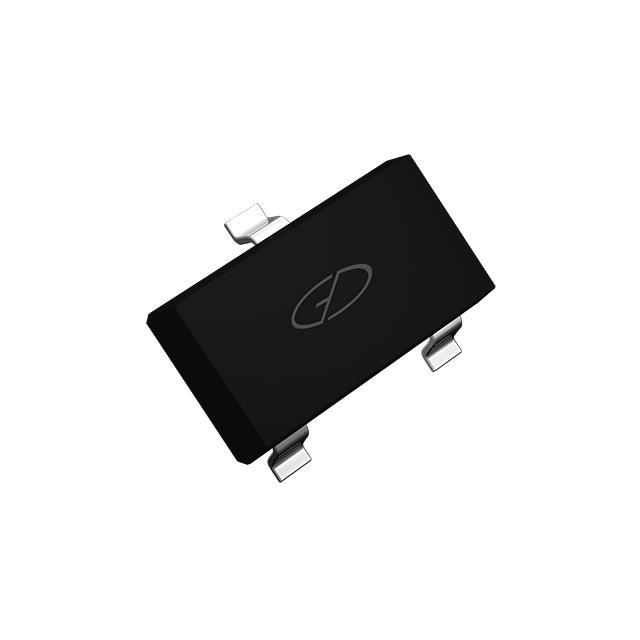

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 220mA (Tj) |
| Rds On (Max) @ Id, Vgs | 3.5Ohm @ 220mA, 10V |
| Power Dissipation (Max) | 430mW |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 50 V |
| Gate Charge (Qg) (Max) @ Vgs | 2.4 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 30 pF @ 25 V |
|
