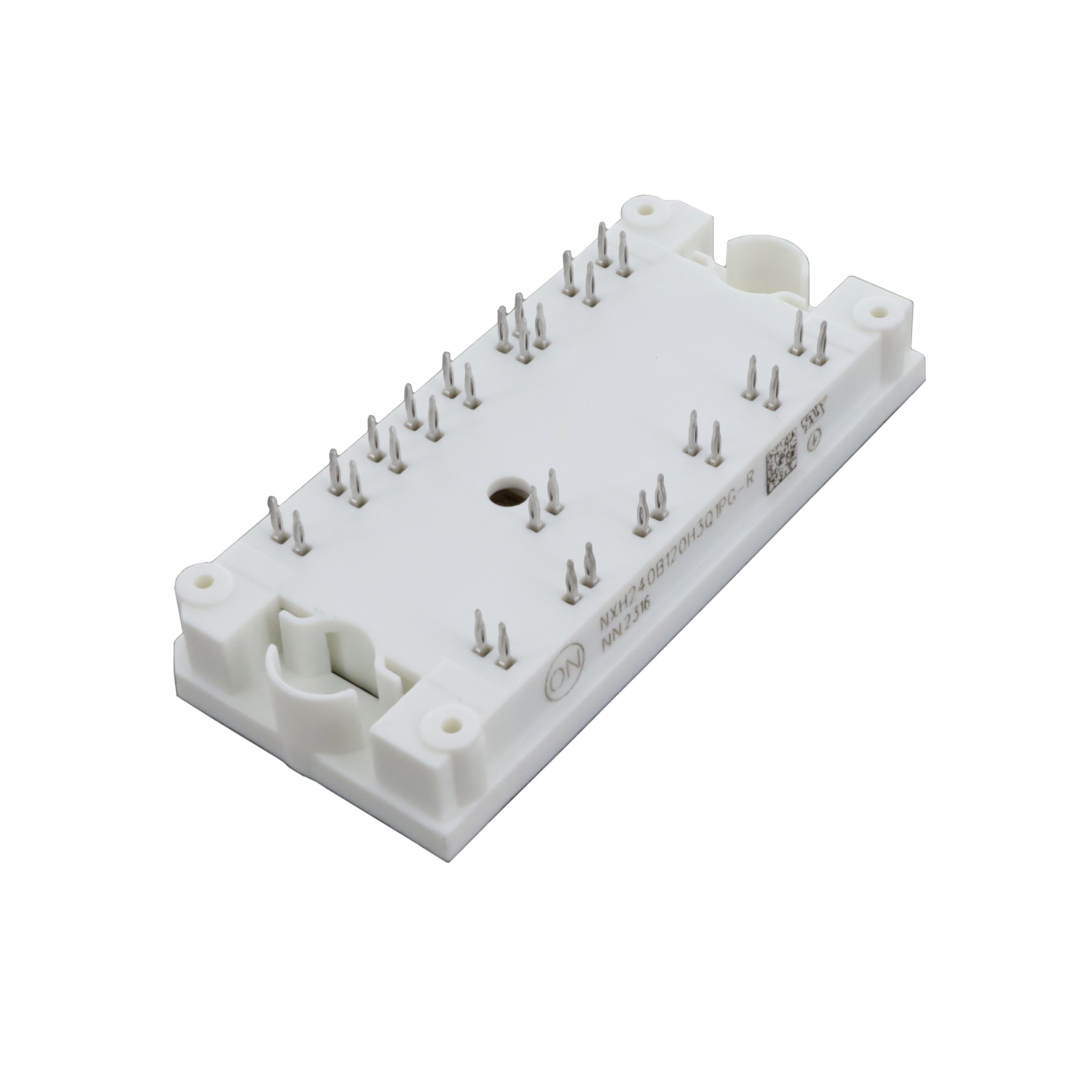

| Part number: | NXH240B120H3Q1PG-R |
| Description: | PIM Q1 3 CHANNEL IGBT+SIC BOOST |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tray |
| Quantity | 21 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 80A |
| NTC Thermistor | Yes |
| Supplier Device Package | 32-PIM (71x37.4) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 68 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 158 W |
| Current - Collector Cutoff (Max) | 400 µA |
| Input Capacitance (Cies) @ Vce | 18.151 nF @ 20 V |
|
