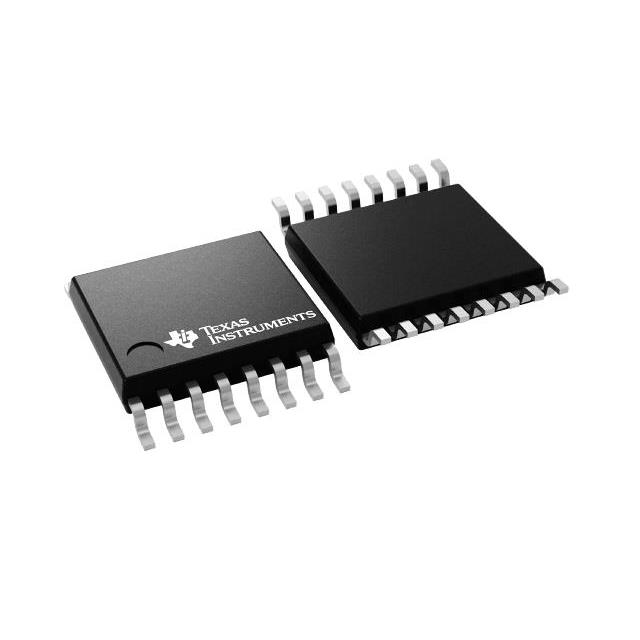

| Part number: | TMUX8212RUMR |
| Description: | 100-V, FLAT RON, 1:1 (SPST), FOU |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 7Ohm |
| -3db Bandwidth | 420MHz |
| Supplier Device Package | 16-WQFN (4x4) |
| Voltage - Supply, Single (V+) | 10V ~ 100V |
| Voltage - Supply, Dual (V±) | ±10V ~ 50V |
| Charge Injection | -1.3nC |
| Crosstalk | -100dB @ 100kHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Switch Time (Ton, Toff) (Max) | 4µs, 100ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Number of Circuits | 4 |
|
