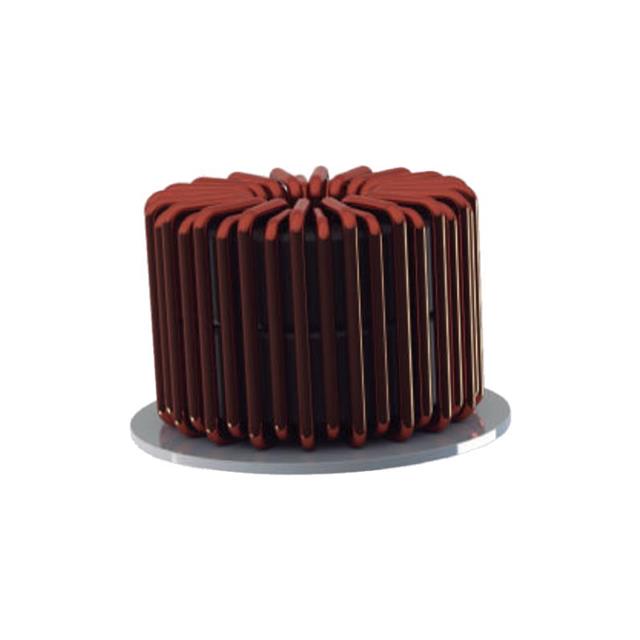

| Part number: | PFCS260-8H |
| Description: | PFC CHOKE 260 UH / 8ARMS / 15APK |
| Manufacturer | Premo S.L. |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Premo S.L." |
| Tolerance | ±12% |
| Package / Case | Horizontal, 2 PC Pin |
| Size / Dimension | 1.736" Dia (44.10mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 140°C |
| DC Resistance (DCR) | 30mOhm Max |
| Ratings | AEC-Q200 |
| Material - Core | Sendust |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Inductance | 260 µH |
| Current Rating (Amps) | 8 A |
|
