| Part number: | 152134 |

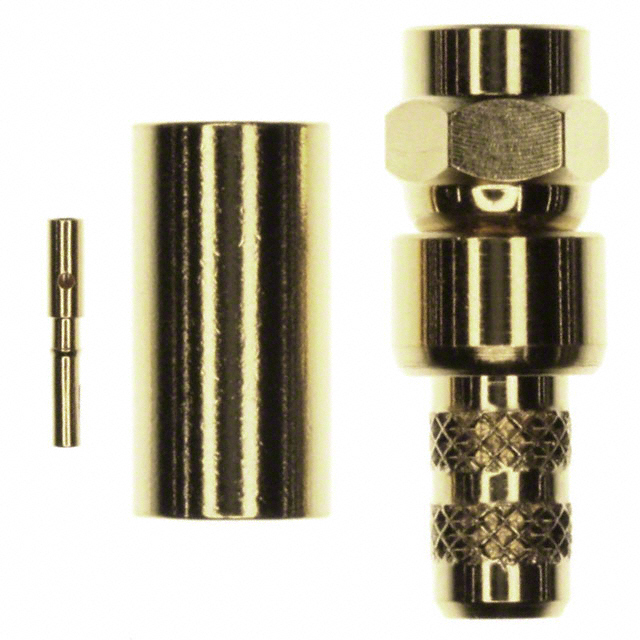

| Description: | CONN SMC PLUG STR 50 OHM SOLDER |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Operating Temperature | -65°C ~ 165°C |
| Insertion Loss | 0.3dB |
| Fastening Type | Threaded |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Connector Style | SMC |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Body Finish | Gold |
| Center Contact Plating | Gold |
| Frequency - Max | 10 GHz |
| Number of Ports | 1 |
| Voltage Rating | 335 V |
|
