| Part number: | RPF1018331M063K |

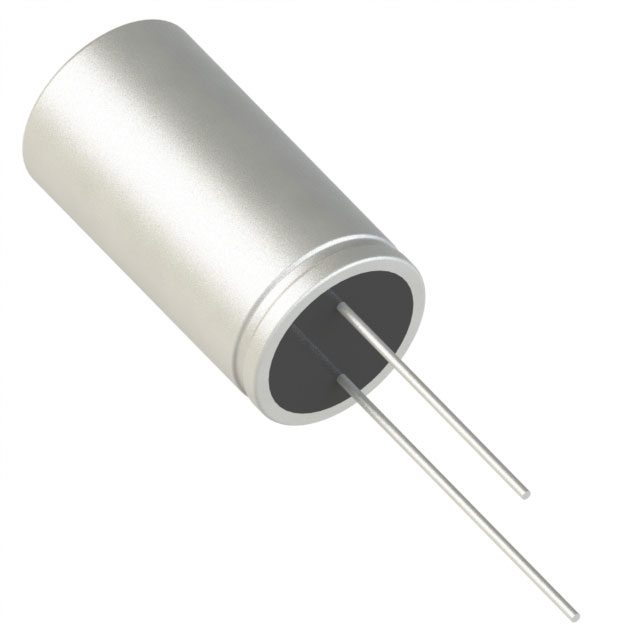

| Description: | CAP ALUM 330UF 20% 63V TH |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Cut Tape (CT) |
| Quantity | 300 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 0.748" (19.00mm) |
| Capacitance | 330 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
|
