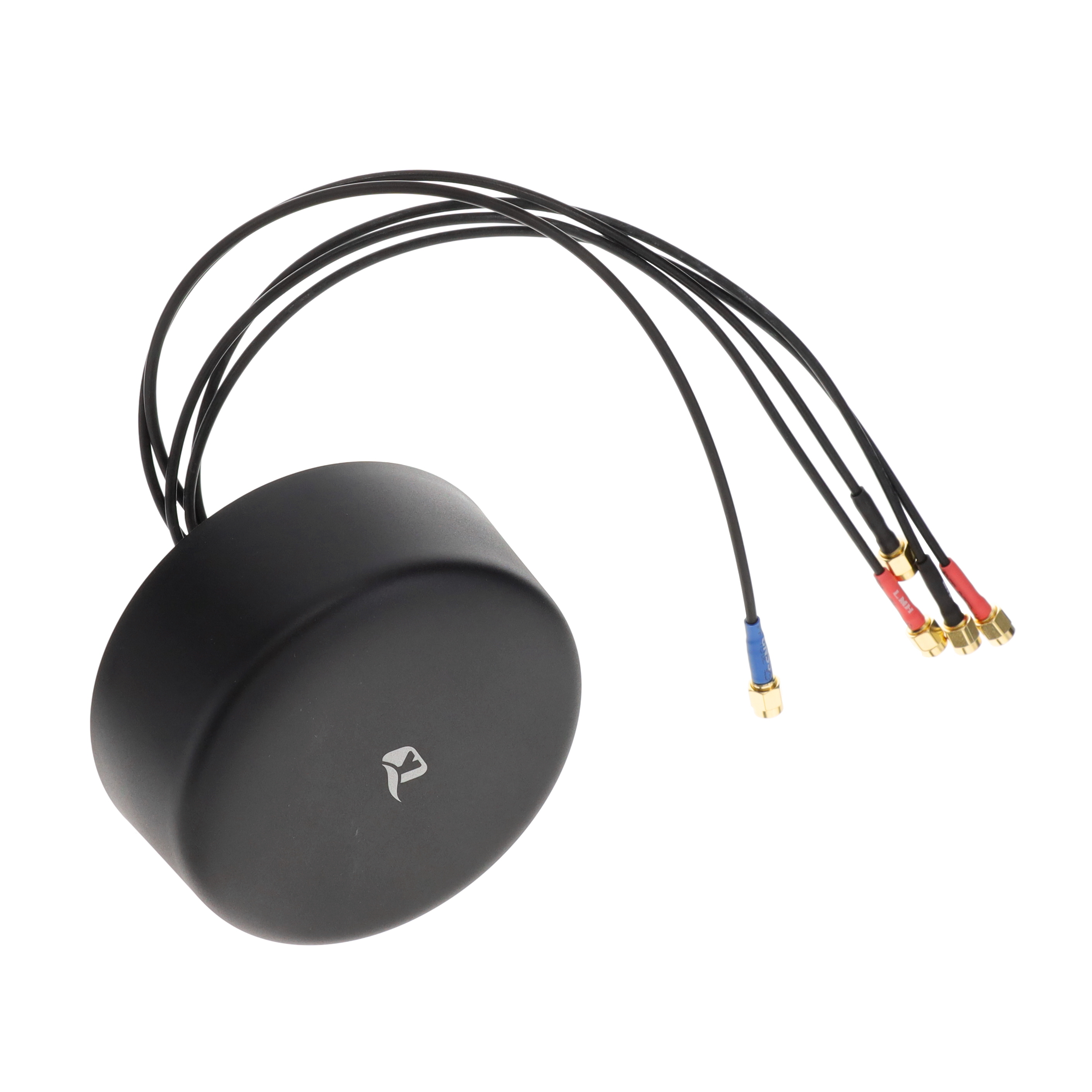

| Part number: | YEMN017AA |
| Description: | 5G COMBO ANTENNA |
| Manufacturer | Quectel |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Quectel" |
| Features | Cable - 300mm, LNA |
| Mounting Type | Screw |
| Frequency Range | 600MHz ~ 700MHz, 700MHz ~ 810MHz, 820MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.217GHz ~ 1.238GHz, 1.42GHz ~ 1.52GHz, 1.559GHz ~ 1.606GHz, 1.7GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz |
| Applications | 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
| Gain | -0.5dBi , 0.6dBi , 1dBi , 2.6dBi , 2dBi , 2.1dBi , 2.3dBi , 2.3dBi , 3dBi , 4.7dBi , 5.1dBi , 5.2dBi , 5.3dBi |
| Termination | SMA Male |
| Ingress Protection | IP67, IP69K |
| Number of Bands | 14 |
| VSWR | 4.1, 5.7, 12.1 |
| Antenna Type | Dome |
| Height (Max) | 1.673" (42.50mm) |
| Return Loss | -1.4dB , -3.1dB , -4.3dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 650MHz, 755MHz, 890MHz, 1.47GHz, 1.935GHz, 2.35GHz, 2.45GHz, 2.595GHz, 3.75GHz, 4.7GHz, 5.5GHz |
| RF Family/Standard | Cellular, Navigation, WiFi |
|
