| Part number: | UM1750S-30 |
| Description: | 5V Input 350mA LDO |
| Manufacturer | UNION SEMICONDUCTOR INTERNATIONAL LIMITED |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "UNION SEMICONDUCTOR INTERNATIONAL LIMITED" |

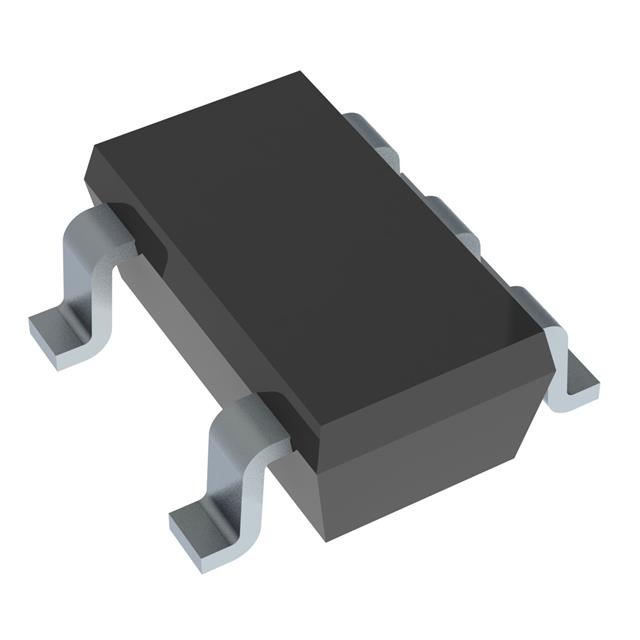

| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 350mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 130 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | Enable |
| PSRR | 63dB ~ 40dB (100Hz ~ 10kHz) |
| Voltage Dropout (Max) | 0.15V @ 0.15A |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 300 µA |
|
